图的存储表示(representations of a graph)

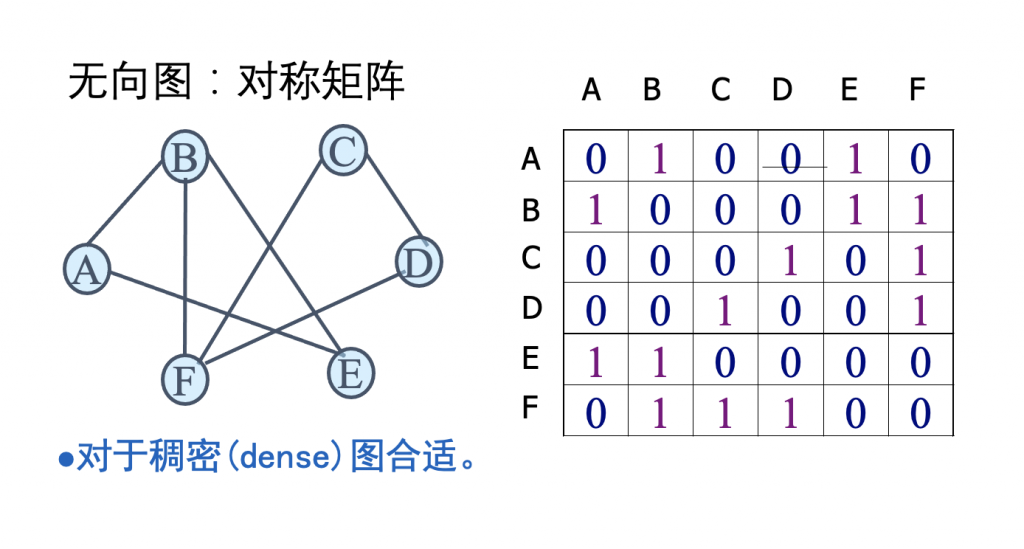

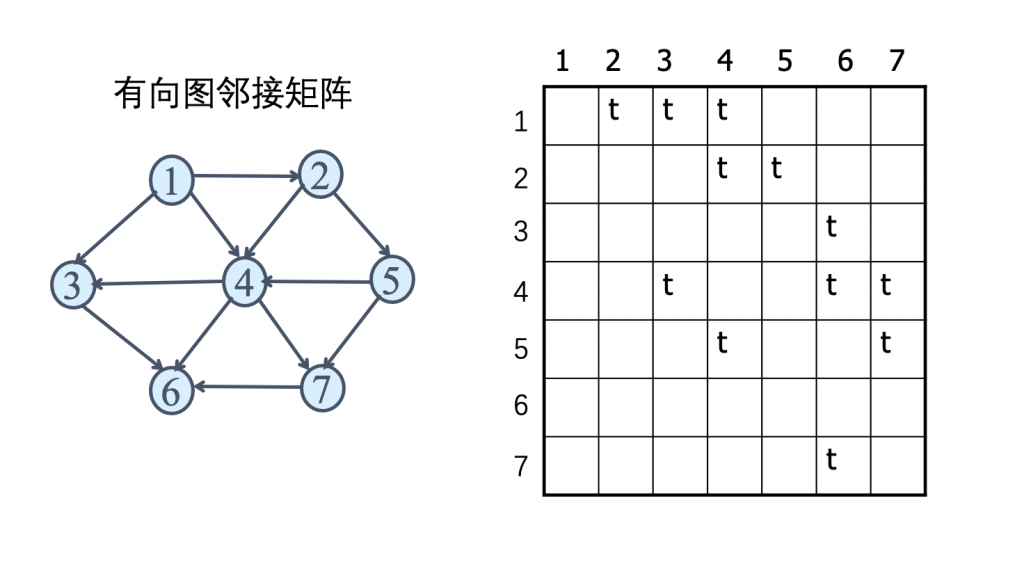

二维数组邻接矩阵存储(Adjacency matrix)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
// C++ tree_BFT
// author: Li, Fuchai
// date: 2022-2-10

#include<iostream>
using namespace std;
int vertArr[20][20]; //the adjacency matrix initially 0
int count = 0;
void displayMatrix(int v) {
   int i, j;
   for(i = 0; i < v; i++) {
      for(j = 0; j < v; j++) {
         cout << vertArr[i][j] << " ";
      }
      cout << endl;
   }
}
void add_edge(int u, int v) {       //function to add edge into the matrix
   vertArr[u][v] = 1;
   vertArr[v][u] = 1;
}
int main() {
   int v = 6;    //there are 6 vertices in the graph
   add_edge(0, 4);
   add_edge(0, 3);
   add_edge(1, 2);
   add_edge(1, 4);
   add_edge(1, 5);
   add_edge(2, 3);
   add_edge(2, 5);
   add_edge(5, 3);
   add_edge(5, 4);
   displayMatrix(v);
}

edit & sun

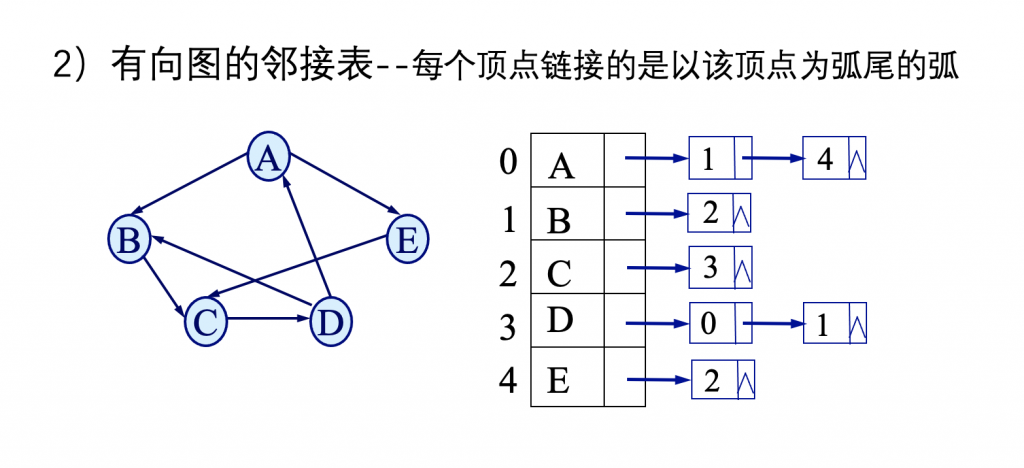

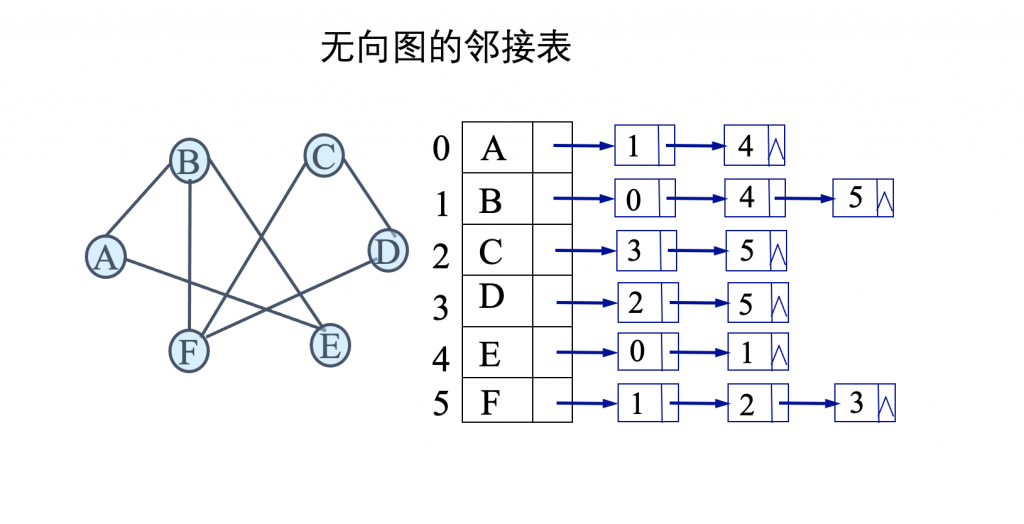

邻接表存储(Adjacency List)

注意:同一个图,可以有多个不同的邻接表的表示方式。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
/****************************************************************
 * Description: Adjascency List representation in C++
 * Author: Alex Li
 * Date: 2022-02-18 21:19:05
 * LastEditTime: 2024-06-24 16:05:25
****************************************************************/


#include <iostream>
#include <vector>
using namespace std;

vector<vector<int> > adj;
// Add edge
void addEdge(int s, int d) {
  adj[s].push_back(d);
  adj[d].push_back(s);
}

// Print the graph
void printGraph(int V) {
  for (int d = 0; d < V; ++d) {
    cout << "\n Vertex "
       << d << ":";
    for (auto x : adj[d])
      cout << "-> " << x;
    printf("\n");
  }
}

int main() {
  int V = 5;

  adj.resize(V);

  addEdge(0, 1);
  addEdge(0, 2);
  addEdge(0, 3);
  addEdge(1, 2);
  addEdge(2, 4);
  printGraph(V);
}
